Industrial Dock Equipment

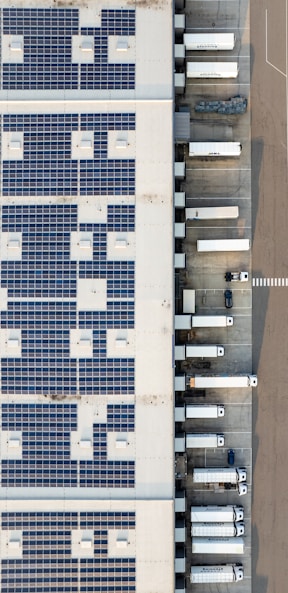

Loading docks are one of the most critical and operationally sensitive parts of any warehouse, distribution centre, or industrial facility. They form the physical interface between the building and the transport fleet and play a central role in the efficiency, safety, and reliability of inbound and outbound logistics operations.

Despite their importance, dock areas are often treated as a standardised element of industrial buildings and are sometimes under-designed or selected late in the project lifecycle. This can result in operational inefficiencies, safety risks, unnecessary retrofitting, and higher long-term costs.

When a business is design a new facility dock equipment including dock levellers, drop plates, hoists, vehicle restraints, seals, shelters, and signalling systems, must be selected early to as the type of equipment selected, and how it is integrated into the building and operations, has a material impact on throughput, labour efficiency, safety performance, and asset reliability.

Bridging the Gap

Drop Plates

The primary function of dock equipment is to bridge the gap between the warehouse floor and the vehicle bed, and to compensate for differences in height between the vehicles and the dock.

The main categories of dock levelling equipment include:

Drop plates are simple, manually placed steel or aluminium plates that span the gap between the dock and the truck. They are low-cost and suitable for low-volume or light-duty applications where there is a standardised fleet of vehicles. Drop plates generally have a limited load capacity, provide few additional safety features and offer no vertical levelling capability.

Mechanical Dock Levellers

Mechanical dock levellers are spring-assisted or counterbalanced platforms that can be manually deployed to bridge the dock and vehicle. They provide basic vertical movement but require physical effort to operate and have limited precision compared to hydraulic systems. A mechanical dock leveller may be appropriate in a location with infrequent deliveries.

Hydraulic Dock Levellers

Hydraulic dock levellers use powered hydraulic systems to raise, lower, and position the platform and lip. They provide smooth, controlled movement, higher load ratings, and better ergonomics, making them suitable for high-volume, high-throughput, or safety-critical environments. The dock leveller may incorporate a electrical or mechanical interlock with other dock equipment offering improved safety.

Dock Hoists

Dock hoists are vertical lifting platforms used where the height difference between the dock and vehicle is too large for a conventional leveller, or where loads must be lifted between significantly different floor levels. They are commonly used for heavy, wheeled, or specialised loads. A dock hoist may be a suitable solution if there is not a sunken dock and the majority of vehicles are side loaded, with only few rear loaded vehicles requiring access.

Horizontal, Vertical and Hybrid Dock Levellers

Horizontal dock levellers are by far the most common powered dock equipment used in Australia, they are operated by lifting a platform and extending a lip horizontally onto the truck bed. They are widely used in conventional dock designs and offer good throughput for general freight operations. Horizontal dock levellers remain permanently exposed to the external environment when not in use, which can create issues with hygiene, pest control, temperature loss, or weather ingress. Horizontal dock levellers also can also leave an exposed edge so consideration needs to be provided treating this hazard when the dock is not in use.

Horizontal Dock Levellers

Vertical Dock Levellers

Vertical dock levellers raise the platform vertically, allowing the dock opening to be completely sealed when not in use. This is particularly beneficial in temperature-controlled, food, pharmaceutical, or high-hygiene environments.

Vertical dock levellers provide superior environmental control, improved cleaning access, and enhanced safety, but typically are more expensive and require more upfront coordination in building design.

Other Dock Equipment and Interfaces

Beyond levellers and hoists, a fully functional dock includes several supporting systems:

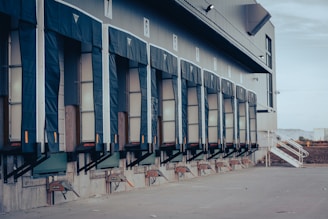

Dock Seals and Shelters

Dock seals and shelters minimise air exchange between the dock and vehicle. Mechanical seals use foam or fabric curtains, while inflatable seals provide a tighter fit and superior thermal performance for cold chain or climate-controlled facilities.

Vehicle Restraints

Vehicle restraints and/or wheel chocks prevent trucks from moving or departing while loading or unloading is in progress. These systems significantly reduce the risk of trailer creep, early departure incidents, and forklift drop-offs.

Signalling Systems

Traffic lights and dock control systems provide visual cues to drivers and dock staff, ensuring vehicles only move when it is safe to do so.

Doors and Interface Systems

Dock equipment must integrate with door systems such as rapid roller doors, panel lift doors, or insulated doors for cold storage environments.

The interface between the leveller, door, restraint, and seal must be designed as a coordinated system rather than as separate components.

Importance of Early Dock Design

Dock equipment should be considered early in the design or relocation process, not retrofitted later.

Early decisions affect:

• Dock height relative to truck fleet

• Ramp geometry and approach slopes

• Structural provisions for vertical levellers and seals

• Door types and clearances

• Floor levels and drainage

• Services, power, and control systems

• Workflows and driver safety

Selecting a fully integrated dock equipment early is particularly important, as it affects building layout, slab design, and envelope detailing. Retrofitting dock equipment later is often costly, disruptive, and technically constrained.

Safety and Systems of Work

Dock equipment should be considered early in the design or relocation process, not retrofitted later.

Early decisions affect:

• Dock height relative to truck fleet

• Ramp geometry and approach slopes

• Structural provisions for vertical levellers and seals

• Door types and clearances

• Floor levels and drainage

• Services, power, and control systems

• Workflows and driver safety

Selecting a fully integrated dock equipment early is particularly important, as it affects building layout, slab design, and envelope detailing. Retrofitting dock equipment later is often costly, disruptive, and technically constrained.

Standards and Maintenance

Dock equipment in Australia is subject to workplace safety obligations, including electrical safety, mechanical safety. Preventative maintenance is critical to both ensure the system is safe and reliable. If one or more docks are out of service, throughput can be reduced, labour costs increase, and service levels suffer.

A structured inspection and maintenance program helps:

• Reduce breakdown risk

• Extend asset life

• Maintain compliance

• Protect operator safety

Other Dock Equipment

Additional elements that need to be considered during the design phase are:

• Handrails and safety railings

• Dock bumpers

• Guide rails for vehicle alignment

• Wheel chocks

• Fall protection barriers

These features enhance safety, reduce damage, and improve operational consistency.

Conclusion

Dock equipment is not simply a functional accessory to a warehouse — it is a critical interface between building, vehicles, people, and operations.

Choosing the right equipment, integrating it properly, and planning it early in the relocation or design process delivers measurable benefits in safety, efficiency, reliability, and long-term cost.

A well-designed dock supports the business. A poorly designed dock constrains it.

For businesses relocating to new premises, dock equipment deserves the same level of planning attention as racking, floor space, or power infrastructure — because it ultimately governs how effectively goods move in and out of the facility.
